Mahr Introduces Millimar C 1202 Digital Amplifier for Length Metrology

Features high-resolution, high-color contrast display to mimic smooth motion of an analog meter

Published: Tuesday, August 24, 2021 - 12:00

(Mahr Inc.: Providence, RI) -- Mahr Inc., a global manufacturer of precision measurement equipment used for dimensional metrology, has introduced the new Millimar C 1202, a full feature, configurable, low-cost, digital length evaluation amplifier for high-precision measurements in the inspection or production environment.

The C 1202 features a high-resolution, high-color contrast display that provides clear and very responsive analog readings with selectable scales. The compact instrument is versatile and suitable for use with a variety of sensors.

The Millimar C 1202 is user configurable with the use of Mahr’s N 1700 series amplifier modules. Modules are available for LVDT inputs in both standard and high-resolution capabilities; pneumatic inputs for air tooling; and input modules for digital encoders. The Millimar C 1202 will allow for up to two inputs and provides the capability of displaying up to three measurement results.

Depending on the input module used, the display range can be up to ±5000 µm with reading resolution of 0.1 µm. When combined with Mahr’s N 1702-HR high-resolution module, the range becomes ±200 µm with reading resolution of 0.01 µm. Users can view the analog scale, numeric digital readings, or both, and the display may be adjusted to the ideal viewing angle (0º to 90º). The C 1202 unit can also be wall mounted.

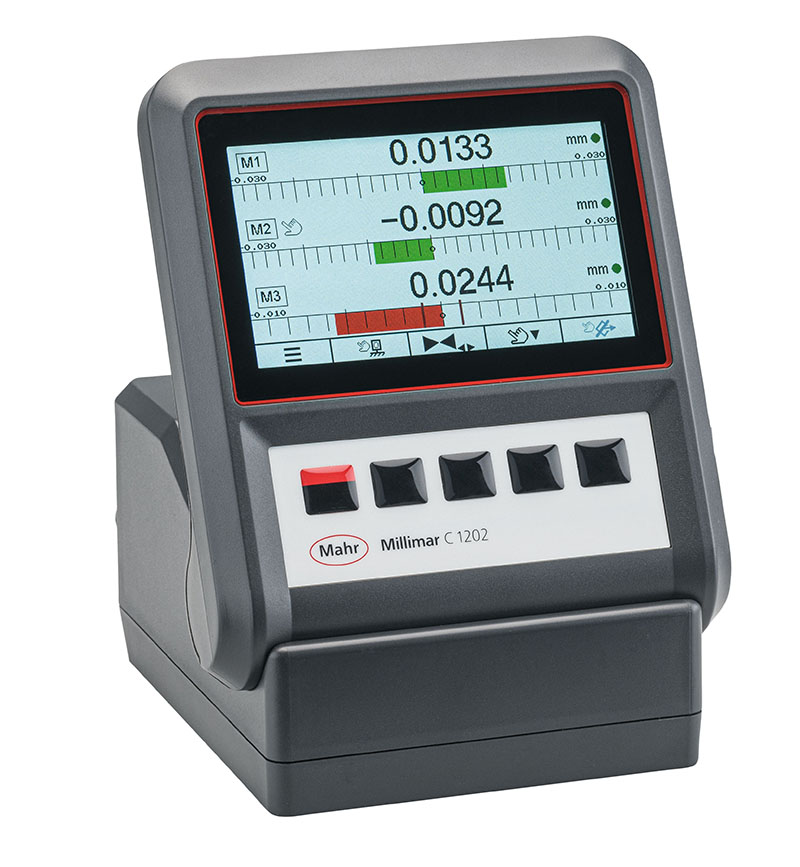

Millimar C1202

“A major design goal for the new C 1202 was to build upon the success and features of the Millimar C 1200 which was a breakthrough high-value amplifier that produced a digital display that perfectly simulates the smooth motion of an analog meter,” says George Schuetz, director precision gages for Mahr. “This fast response is ideal for exploring part deviations common with surface plate measurement applications and has been carried over into the C 1202. However, the new C 1202 multiplies the input capabilities, providing the ability to do multiple input applications such as differential measurements, tapers, and taper angles.”

The Millimar C 1202 is a full feature bench amplifier allowing for signal combination, formula creation, tolerancing for part qualification, dynamics, and part creation and storage—all of the features needed for today’s high-performance gaging requirements. There are also capabilities for using the C 1202 in semiautomatic bench gage applications as it can be externally controlled and implement timing configurations. Data output is available using MarConnect cables for Digimatic, Opto-RS 232, or USB interface. Output type is auto-sensed by the cable connected to it.

Operating features are set up using an integrated five-button keypad. Features such as unit selection (in/mm/µm), normal/reverse polarity, measuring range, formula creation, display configuration, preset, factor, and tolerance entry are easily set up by visual menu options. When tolerances are used, the backlit display shows pass/fail status using green/red colors.

About Mahr Inc.

When customers are faced with a metrology need, they turn to Mahr Inc., for unmatched industry expertise. Mahr Inc.’s knowledgeable, experienced team has made the company a leader in precision measurement for more than a century.

Mahr Inc., a member of the Mahr Group, has been providing dimensional measurement solutions to fit customer application needs for more than 160 years. The company manufactures and markets a wide variety of dimensional metrology equipment, from simple and easy-to-use handheld gages to technically advanced measurement systems for form, contour, surface finish, and length. Mahr Inc. is also well known as a producer of custom-designed gages and a provider of calibration and contract measurement services. Mahr Inc.’s calibration laboratories are accredited to ISO/IEC 17025:2005 NVLAP Lab Code 200605-0 (see our Scope of Accreditation for accredited calibration processes). For more information, visit www.mahr.com.
