How ESPRIT Helps Green Tools Produce First-Class Tools

Seamlessly integrates with milling center, enabling company to make full use of five-axis machining capabilities

Published: Tuesday, August 20, 2019 - 12:02

Founded in St. Petersburg, Russia, in 2001, Green Tools is a leading manufacturer of cutting tools, providing circular saws and other woodcutting machines for the sawmill, furniture, and woodworking industries throughout Russia.

Green Tools began as a small reseller of woodworking tools produced by German tool-maker AKE. Over time though, the company progressed to manufacturing cutting tools of its own, moving from tool merchant to tool maker. As Kirill Smolin, technical consultant at Green Tools relates, At first we were a distributor of woodworking mills and saws produced at AKE factories in Germany while also providing tool sharpening services. Then we started to make tools ourselves on specialized machines that do not require a CAM [computer-aided manufacturing] system.

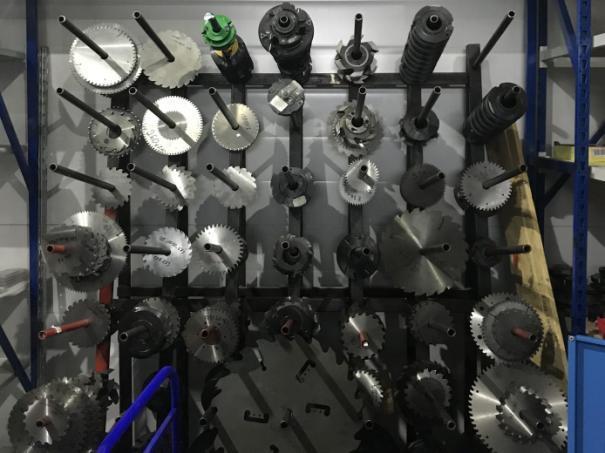

An array of cutting tools made by Green Tools

Choosing a machining center

As the companys toolmaking business grew, the complexity of its production jobs also increased; in time Green Tools found that the complicated geometry of the parts it was making was beginning to exceed its production capabilities. Without an in-house CAM system, the company was forced to subcontract some of its more challenging jobs to other shops, a situation that not only proved to be expensive and slow, it also often resulted in lower-quality parts.

After evaluating its expanding manufacturing challenges, Green Tools made the decision to purchase its own equipment with a view to doing all of its five-axis machining in-house. When it came to what equipment to buy, one manufacturer stood out from the rest.

We made a choice to buy a HAAS UMC-750SS CNC vertical milling center, says Smolin. “In terms of price, machining capabilities, and quality, the HAAS machine was clearly the best for us.”

Green Tools purchased the milling center from St. Petersburg machine tool dealer Abamet-North-West, which quickly delivered the equipment.

Finding the right CAM system

After acquiring the HAAS, Green Tools then needed to purchase a CAM system that would seamlessly integrate with the milling center, enabling them to ramp up production and make full use of their new five-axis machining capabilities. The company evaluated a number of CAM packages but could not find a software solution that suited them in terms of functionality and cost.

Then, on the advice of colleagues from the custom manufacturing studio BOX 39, they decided to run some test operations using ESPRIT, DP Technologys powerful CAM system, and were pleasantly surprised. “The program is different from all the others that we tried,” says Smolin. Powerful product functionality combined with a reasonable price, a user-friendly interface, the availability of certified postprocessors, and the software’s ability to create a virtual model of our machinethese were among the main factors that influenced our decision to purchase ESPRIT.”

Green Tools was also pleased with the high level of customer service it received from the software reseller, LOCNITI. Prior to the arrival of the HAAS equipment, LOCNITI had multiple consultations with Green Tools and conducted training sessions with ESPRIT a couple of weeks before the vertical milling center was delivered. “By the time we received the machine, we were not only aware of ESPRIT’s potential, we already knew how to work in the software, which of course is a big plus," comments Smolin.

Implementation of the ESPRIT CAM system

Having been trained in the ESPRIT CAM system, Green Tools specialists immediately began work on creating control programs to use on the HAAS equipment. “Programming five-axis machines is quite a difficult task, so we were very pleased with the availability of good technical support,” says Smolin.

Throughout the CAM implementation process, the engineers of LOCNITI provided skilled assistance in mastering the ESPRIT system, including live technical support onsite at Green Tools, and quickly resolved any issues that arose.

It didn’t take long before Green Tools knew that it had made the correct decision in bringing its machining operations in-house. “Buying our own equipment and implementing the ESPRIT CAM system was the right solution, says Smolin. We no longer need to contract services from third-party organizations, and it also became easier to exercise control and make changes to the production process.

Using ESPRIT to create a cabinet milling cutter

The process of making a cabinet milling cutter illustrates how adopting a powerful and flexible CAM system has helped advance Green Tools’ manufacturing.

After first writing the initial computer numerical control (CNC) program for the part, Green Tools engineers run a simulation of the programming in ESPRIT before milling the part on the machine. The software provides full machine-tool simulation in real time, enabling programmers to see a virtual version of the complete machining operation before it beginsincluding all elements of the process such as the machine, workpiece, spindles, and turrets.

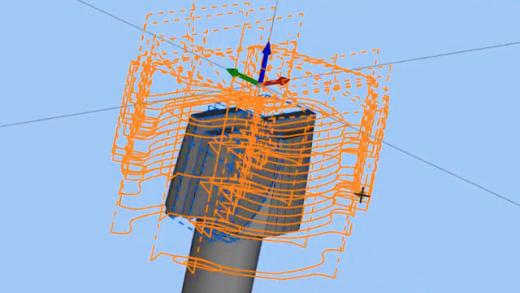

A woodworking milling cutter being programmed in ESPRIT

This ensures the accuracy of the toolpath generation and facilitates easy optimization of machining parameters, if necessary. It also saves time. Being able to see and review the programming before the part goes into the machine is significantly more productive than the previous method of programming the job at the machine, a task that took up valuable time that could have been used to manufacture parts. Additionally, the software’s Collision Detection feature finds and alerts programmers to collisions between the tool assembly and the stock, ensuring that collision-free toolpaths are created.

“The high quality and accuracy of ESPRIT’s virtual machine environment visualization allowed us to avoid errors and program correction on the machine,” says Smolin.

Once the programming is complete, the final step, machining the product on the HAAS milling center, begins. The process of making the milling cutter body can be seen in the following video:

Many industrial enterprises are in search of a CAM system that can quickly and easily create accurate G-code while also saving time by automating many of the functions necessary for the development of CNC programs. Green Tools chose ESPRIT, and as it approaches its 20th year in business, all signs point to its continued success.

“Summing up, I can say that we have only just begun to conquer ESPRIT and are still exploring the many functionalities it offers,” says Smolin. “We have a wide range of products, and this requires quick and accurate preparation of control programs and processing of the parts. With ESPRIT as our CAM system, I am confident that Green Tools can meet all future manufacturing challenges.
