Regular inspection is absolutely vital with industrial transmission systems. Just like the gearbox in an everyday car, components are prone to wear, misalignment, and fatigue—issues that can lead to machinery failure. This isn’t just a matter of downtime but operator safety, too.

Traditionally, heavy-duty gearboxes are measured using tapes, calipers, and gauges in a time-tested but slow process that’s overly reliant on user skill. Aiming to accelerate this workflow and all but eliminate measurement errors, industrial service provider Rockwell has adopted Artec Leo, a wireless, AI-powered device that’s already delivering game-changing results.

Rethinking inspection at Rockwell

Since its inception in 2001, Rockwell has grown from a distributor of industrial products into a fully-fledged service provider. Best known for its transmission offering, the company has worked with leading brands like METSO, KSB, RATHI, SKF Gearboxes, and Premium Transmission—and it has a portfolio of gears and couplings that meets every application need.

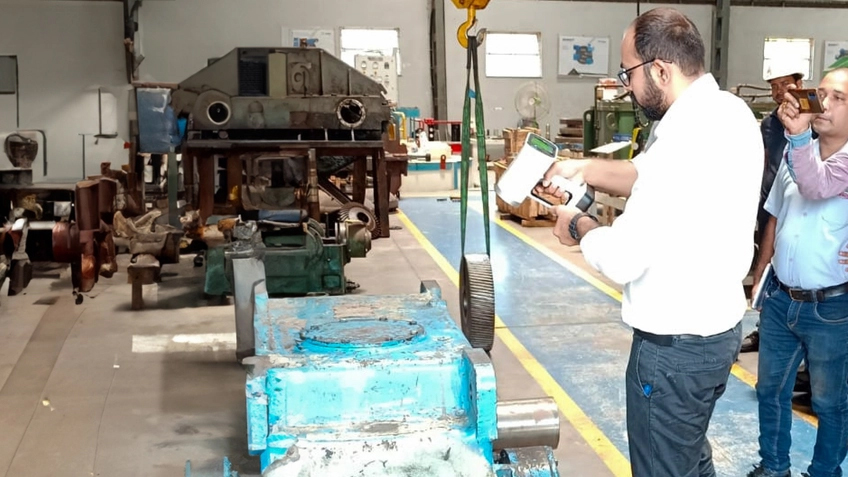

Artec Leo’s built-in display delivers real-time feedback for engineers. Image courtesy of Rockwell

Rockwell’s state-of-the-art manufacturing facilities are also kitted out with all the equipment required for in-house design, forging, metalworking, finishing, and testing. But until recently, the firm carried out measurement tasks with traditional tools. This changed when it discovered Leo online and contacted certified Artec 3D partner Altem Technologies for a demo.

Blown away by the combined speed, simplicity, and accuracy of the device, Rockwell has since acquired and integrated the technology into its inspection workflow. Leo has proven particularly useful in measuring critical components, extremely large parts with shiny surfaces, deep pockets that can be difficult to reach, and those with fine operational tolerances.

Leo’s point-and-shoot functionality allows new users to achieve high-quality results in minutes, while its built-in screen, battery, and processor make it easy to deploy offsite. Using the new professional 3D scanner, the Rockwell team has found it much easier to capture complex geometries at pace, picking up usable data with up to 100-micron accuracy.

Identifying mesh-sketch deviations

Rockwell’s reverse-engineering process starts inside Artec Studio. The 3D data-capture and -processing software comes with all the essentials for reverse engineering and inspection. In this case, the company uses the platform’s built-in tools to fuse data into a 3D mesh, tidy it up, and export it seamlessly to popular engineering program SOLIDWORKS.

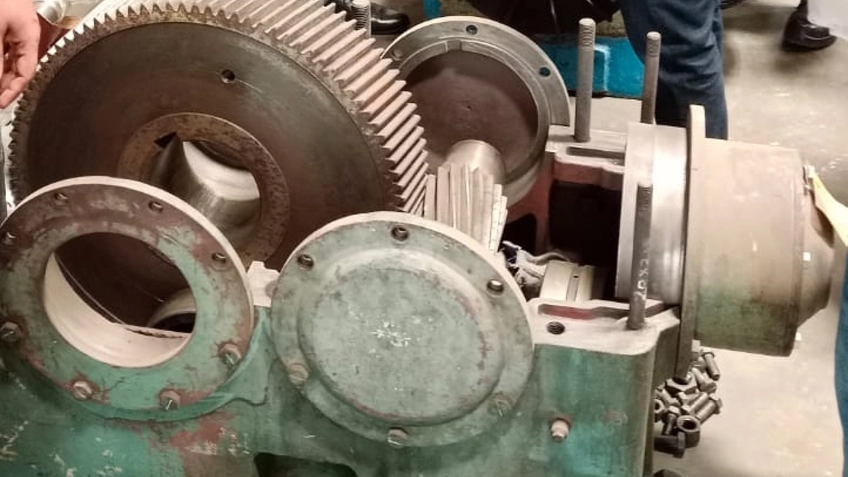

3D scanning with Artec Leo ensures submillimeter-accurate results when inspecting complex parts like this one. Image courtesy of Rockwell

Using the Geomagic for SOLIDWORKS plug-in, Rockwell engineers are able to go from scan to solid, feature-based CAD model—ideal for in-depth inspection. Plugging more advanced Geomagic tools into its existing SOLIDWORKS setup allows for deviation analysis between scans and sketches while taking into account design intent, history, and constraints.

Creating sketch profiles also helps Rockwell to analyze cross-sections on cylindrical gearboxes and identify design irregularities that cause malfunctions. Compared to measurements captured with manual tools, Leo’s have turned out to be much more accurate—and the ultraflexible, high-speed device also captures faster, completing more jobs in the same time frame.

Fresh opportunities in powertrain MRO

Artec 3D scanning is revolutionizing manufacturing, repair, and overhaul (MRO), with Leo proving a reliable digitization tool for industrial engineers everywhere. Take the team at Ausco Products, which uses the device to inspect industrial brake castings, or Dodman Ltd., which pairs it with Artec Ray II to capture entire factory floors for planning applications.

Moving forward, Rockwell sees further potential for the technology in other areas of its business where dimensional precision is key. The company continues to offer aftermarket services in refurbishment, maintenance, and technical consultancy. As its team masters 3D data capture, it’s only a matter of time before they identify potential lead time gains elsewhere.

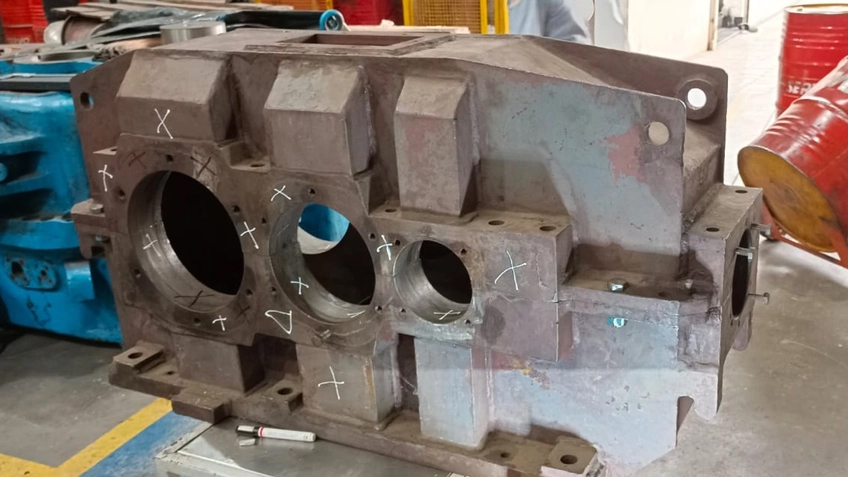

One of the large-format parts Rockwell has inspected with Leo. Image courtesy of Rockwell

Rockwell already has a well-earned reputation for delivering fast, efficient services that ensure machine safety and help avoid unexpected failures. With Leo in its toolbox, its business is surely going to grow even further, showing that Artec 3D scanning isn’t just about delivering higher-quality results; it can have positive, lasting effects across the board.
