NIST’s ‘Charpy’ Test: A Precise Impact on Industrial Materials

Decades-old impact test about to be significantly improved

Published: Tuesday, April 10, 2018 - 12:01

A decade before an iceberg shattered the hull plates of the Titanic and half a century before a plague of brittle fractures started sinking Liberty ships during World War II, scientists in the United States and France had devised a novel, and strikingly simple, method for measuring the way metal reacts to impact.

Today, that method, with some upgrades and refinements, remains the standard test used worldwide to judge the impact resistance of metals used in bridge construction, high-pressure boilers, ocean ships, armor plate, nuclear pressure vessels, and other applications. Now it is about to be significantly improved, thanks in large measure to a cooperative research program by scientists at the National Institute of Standards and Technology (NIST).


For more than 100 years, scientists have tested the impact resistance of metals used in construction by employing an apparatus called a Charpy machine. This device has a long, weighted arm that swings like a pendulum. When the arm is released, it strikes a metal sample. Researchers measure the energy it takes to break the sample in two.

“Knowing the dynamic tensile and yield properties at very high loading rates can be critically important in evaluating the crash-worthiness of devices and structures,” says Enrico Lucon, a veteran engineer and testing expert in NIST’s Charpy lab in Boulder, Colorado. (The lab has six different Charpy machines of different configurations and energy levels, ranging from a 1000-joule, or 738 ft-lb, model used for experiments on high-strength steels to a table-top unit for measurements on miniaturized Charpy specimens.)

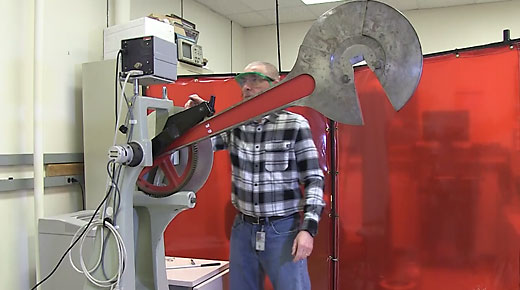

Every kind of metal has some combination of brittle and ductile (i.e., softer or less brittle) properties. The measurements that reveal those properties, called Charpy tests, are made on a machine that consists of a long, weighted arm, suspended by an axle, that swings like a pendulum. (See video.) A notched specimen of the material to be tested is placed on the base of the machine at the lowest point in the pendulum’s arc. (The pendulum-strike method was pioneered by American Silas Bent Russell in 1896, and was later improved by French researcher Georges Augustin Charpy, who proposed it as an ASTM standard.)

The arm is raised to an exactly measured height and then released. It swings down, breaking the sample, and continues its swing upward until it reaches a maximum height that is lower than its initial height. The difference between the two heights is a measure of how much energy was expended in breaking the sample.

In its classic form, the machine has many sources of error, and it is difficult to compare results from different devices. Since the 1920s, researchers have been fitting out the pendulum’s wedge-shaped impact edge (called a striker) with instruments known as strain gauges, which send electrical signals proportional to the deformation of the striker during impact.


A Charpy test determines the impact toughness of metal samples by striking them with a swinging mass. The traditional test method requires measuring the difference between the height of the striker before and after impact. An instrumented striker, on the other hand, has force sensors on the striker’s edge, allowing scientists to record the force on the sample through impact. This helps researchers to more precisely determine the impact toughness and ductility of various metals.

Instrumented strikers offer the possibility of greatly enhanced accuracy. At present, however, “there is no international agreement on the shape and configuration of the striker, where the strain gauges are placed, how many gauges are used, how close to the striking edge they are located, and more,” Lucon says. “We’ve been working for a couple of years now, and we’re about halfway to the point of proposing an optimized design for instrumented Charpy strikers.”

NIST researchers are also working on an important related problem: accuracy concerns about the present widely used method of calibrating the strain gauges. It is a static process (static calibration) in which an exactly known force is applied to the striker, and the resulting voltage is recorded.

“But impact is a highly dynamic process,” says NIST physicist Akobuije Chijioke, whose group has partnered with the Charpy lab to develop improved calibration of the instrumented strikers. “The ratio of force and output voltage from the striker can change greatly during an impact that typically lasts from less than 1 millisecond to 5 milliseconds.”

Methods have been developed to improve upon this, for example by taking advantage of the absorbed energy measurement in a Charpy test, but a true dynamic calibration of the Charpy force measurements is lacking. “To address this, we are developing an SI-traceable true dynamic calibration,” Chijioke says. The process employs a dynamically calibrated force transfer standard, brought from the Dynamic Force Metrology Lab in Gaithersburg, Maryland.

NIST’s instruments can record millions of strain and voltage readings per second. “To determine the proportion of ductile to brittle fracture in various steel types, you need that kind of resolution,” says Lucon.

The Charpy researchers are also testing redesigned strikers. “The design of the striker affects how well you can calibrate it, and how much information you can get out,” Chijioke explains, such as how much a given force will move, or displace, the material of interest. “The goal is to provide SI-traceable, consistent force measurements that enable comparable force-time data across all types of Charpy machines and achieve a true dynamic calibration procedure for instrumented Charpy strikers. The design of the striker impacts our ability to accomplish this.” The NIST team is closing on a design that Lucon calls “not final, but extremely promising.”

Of course, not all the machines in industrial use have instrumented strikers. But all of them still need to be verified periodically using standards issued by organizations such as the American Society for Testing and Materials (ASTM) International. This is done by using reference steel test specimens. NIST plays a key role in this process worldwide by providing standard test specimens (usually 10 mm x 10 mm x 55 mm, about the size of a human finger) available in three levels of toughness, which can be used to verify machines with two different striker configurations.

NIST certifies its reference specimens using three of the Boulder lab’s multiple Charpy machines, and ships out about 2,000 sets of five specimens per year. Because impact toughness changes with temperature, NIST requires its specimens to be tested at –40 ˚C. Most other national metrology institutes produce specimens that have to be tested at room temperature.

“Because of its combination of simplicity and reliability, the Charpy test has been embedded into steel specifications all over the world to ensure the toughness needed for critical infrastructure applications such as bridges, building structures, nuclear infrastructures, and pipelines,” says NIST materials scientist James Fekete, who heads the division that includes the Charpy lab. “The NIST program, combined with the ASTM testing standard, ensures a globally reliable energy scale for the Charpy test with the lowest uncertainties obtained to date.
