Published: Tuesday, August 30, 2011 - 11:20 The expression “beauty’s only skin-deep” has often been applied to the chemistry of materials because so much action takes place at the surface. However, for many of the materials in today’s high technologies, such as semiconductors and superconductors, once a device is fabricated, it is the electronic structures below the surface, in the bulk of the material or in buried layers, that determine its effectiveness. For the past 30 years, one of the most valuable and widely used techniques for studying electronic structures has been ARPES—Angle-Resolved PhotoEmission Spectroscopy. However, this technique primarily looks at surfaces. Now, for the first time, bulk electronic structures have been opened to comparable scrutiny through a new variation of this standard called HARPES—Hard X-ray Angle-Resolved PhotoEmission Spectroscopy—whose development was led by researchers with the U.S. Department of Energy’s Lawrence Berkeley National Laboratory (Berkeley Lab). “HARPES should enable us to study the electronic structure of any new material in the bulk, with minimum effects of surface reactions or contamination,” says physicist Charles Fadley, who led the development of HARPES. “Our technique should also allow us to probe the buried layers and interfaces that are ubiquitous in nanoscale devices, and are key to smaller logic elements in electronics, novel memory architectures in spintronics, and more efficient energy conversion in such technologies as photovoltaic cells.” Fadley is a physicist who holds joint appointments with Berkeley Lab’s Materials Sciences Division and the University of California (UC) Davis, where he is a Distinguished Professor of Physics. He is also one of the world’s foremost practitioners of photoelectron spectroscopy, a technique based on the photoelectric effect described in 1905 by Albert Einstein. When a beam of photons—particles of light such as X-rays—is flashed on a sample, energy is transferred from the photons to electrons, causing them to be emitted from the sample. By measuring the kinetic energy of these emitted photoelectrons and the angles at which they are ejected, scientists can learn much about the sample’s electronic structure. The successful demonstration of the HARPES technique has been reported in the journal Nature Materials in a paper titled, “Probing bulk electronic structure with hard X-ray angle-resolved photoemission.” Fadley was the senior author of this paper. The lead and corresponding author was Alexander Gray, a member of Fadley’s UC Davis research group and also an affiliate with Berkeley Lab’s Materials Sciences Division. Figure 2: With photoemission spectroscopy techniques, such as HARPES, a beam of X-rays flashed on a sample transfers energy from the photons to electrons, causing photoelectrons to be emitted. Measuring the kinetic energy of these photoelectrons and the angles at which they are ejected reveals much about the sample’s electronic structure. (Image from Fadley group.) “The key to probing the bulk electronic structure is using hard X-rays, which are X-rays with sufficiently high photon energies to eject photoelectrons from deep beneath the surface of a solid material,” says Gray. “High-energy photons impart high kinetic energies to the ejected photoelectrons, enabling them to travel longer distances within the solid. The result is that more of the signal originating from the bulk will be detected by the analyzer.” Whereas the typical ARPES experiment, using low energy or “soft” X-rays (10~100 eV photons), probes to a depth of less than 10 angstroms (a few layers of atoms), with their HARPES technique Fadley and Gray and their colleagues on this project were able to probe as deep as 60 angstroms into the bulk of single crystals of tungsten and gallium-arsenide. Their achievement was made possible by a combination of third-generation light sources capable of producing intense beams of hard X-rays, and an advanced electron spectrometer to measure energies and angles. “While high-energy photons are needed to penetrate into the bulk, at high energies the photoemission intensity that carries information about the electronic band structure is drastically reduced by various factors, such as phonon effects and small photoelectric cross sections of the valence-band electron orbitals,” Gray says. “However, HARPES measurements become possible with the advent of the third-generation synchrotron light sources and the development of hard X-ray monochromators and optics capable of focusing a highly intense X-ray beam into a very small measurement spot.” To demonstrate the capabilities of their HARPES technique, Fadley and Gray used a high-intensity undulator beamline at the SPring8 synchrotron radiation facility in Hyogo, Japan, which is operated by the Japanese National Institute for Materials Sciences. The samples they worked with, tungsten and gallium arsenide, contain relatively heavy elements that have relatively small phonon effects (atomic vibrations), but to further reduce these effects, the samples were cryo-cooled. By combining room temperature and cryo data, the researchers were able to correct for the influence of indirect transitions and photoelectron diffraction in their results. “Having sufficient photons from the beamline was critical, as was having a high-energy resolution that required an undulator source, a special monochromator, and a photoelectron spectrometer with both high throughput for intensity and a lens with angle-resolving capability,” Fadley says. “Our HARPES technique not only provided us with information about the energies of the emitted photoelectrons, but also with information about the crystal momentum of electrons within the bulk solid,” adds Gray. “This extra dimension carries a vast amount of information regarding electronic, magnetic, and structural properties of materials, and can be used for in-depth studies of such novel phenomena as high-temperature superconductivity and so-called Mott transitions from insulating to conducting states that might be used for logic switching in the future.” In the future, Fadley and Gray will be able to carry out HARPES experiments much closer to home. At Berkeley Lab’s Advanced Light Source (ALS), the first of the world’s third-generation synchrotron radiation facilities, a new experimental chamber for beamline 9.3.1 is scheduled to open this fall that will provide unique, hard X-ray angle-resolved photoemission capabilities. “An additional hard X-ray photoemission spectroscopy chamber at beamline 9.3.1 will feature an ambient-pressure, high-energy photoemission capability that will allow the study of energy-related problems, such as batteries, fuel cells, and catalysis under in-situ and in-operando conditions,” says Zahid Hussain, who manages the ALS Scientific Support group. “It will also enable depth-sensitive studies and make it possible to probe not only solid but also gas and liquid interfaces. This will be the first such experimental facility in the world.” Co-authoring the Nature Materials paper with Fadley and Gray were Christian Papp, Shigenori Ueda, Benjamin Balke, Yoshiyuki Yamashita, Lukasz Plucinski, Jan Minár, Juergen Braun, Erik Ylvisaker, Claus Schneider, Warren Pickett, Hubert Ebert, and Keisuke Kobayashi. Article by Lynn Yarris of Berkeley Lab. Quality Digest does not charge readers for its content. We believe that industry news is important for you to do your job, and Quality Digest supports businesses of all types. However, someone has to pay for this content. And that’s where advertising comes in. Most people consider ads a nuisance, but they do serve a useful function besides allowing media companies to stay afloat. They keep you aware of new products and services relevant to your industry. All ads in Quality Digest apply directly to products and services that most of our readers need. You won’t see automobile or health supplement ads. So please consider turning off your ad blocker for our site. Thanks, Founded in 1931, on the belief that the biggest scientific challenges are best addressed by teams, Lawrence Berkeley National Laboratory (Berkeley Lab) and its scientists have been recognized with 13 Nobel Prizes. Today, Berkeley Lab researchers develop sustainable energy and environmental solutions, create useful new materials, advance the frontiers of computing, and probe the mysteries of life, matter, and the universe. Scientists from around the world rely on the Lab’s facilities for their own discovery science. Berkeley Lab is a multiprogram national laboratory managed by the University of California for the U.S. Department of Energy’s Office of Science.Berkeley Lab Scientists Unveil an X-ray Technique Called HARPES
Ability to probe deep below material surfaces should be boon for nanoscale devices

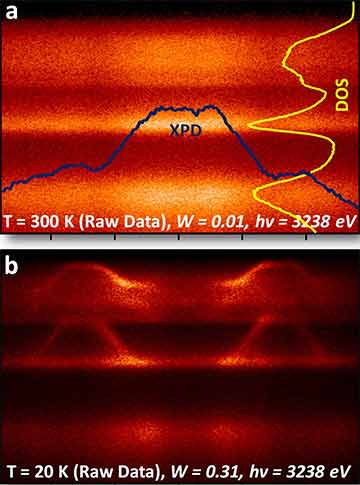

Figure 1: By collecting and comparing HARPES data at room and cryo temperatures, Berkeley Lab researchers were able to correct for density of state (DOS) and X-ray photoelectron diffraction (XPD) influences in determining electronic structures deep below sample surfaces. (Image from Fadley group.)

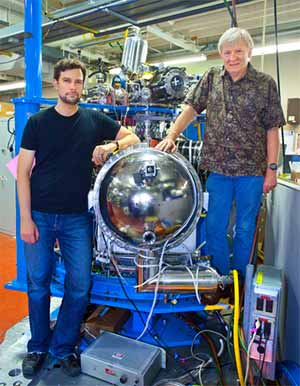

Figure 3: Alexander Gray (left) and Charles Fadley at Beamline 9.3.1 of Berkeley Lab’s Advanced Light Source, where they will soon be able to carry out their hard X-ray angle-resolved photoemission spectroscopy (HARPES) experiments. (Photo by Roy Kaltschmidt, Berkeley Lab.)
