Nuclear fusion is seen as a possible visionary solution to the energy problems of the future—clean and comparatively low-risk. Small atomic nuclei are fused at extreme temperatures and pressures instead of being split as in the reactors of conventional nuclear power plants. A similar process takes place in stars and therefore also in the sun. This generates an enormous amount of energy—without releasing CO2.
ADVERTISEMENT |
The idea of using nuclear fusion to generate large amounts of energy in a climate-neutral way is considered a dream of mankind. However, nuclear fusion is technically extremely demanding, and its realization requires not only immense investment but also ambitious research and development.

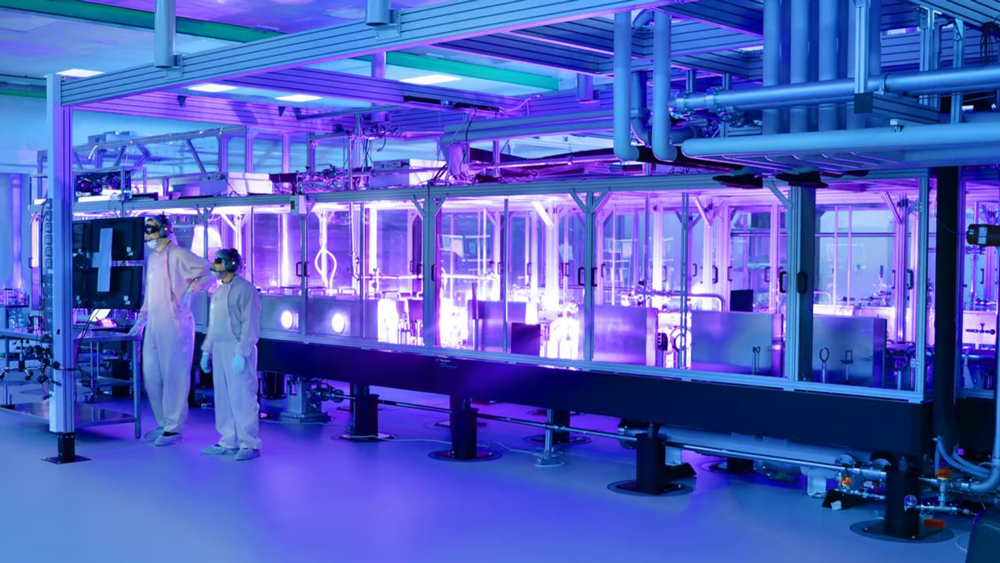

Marvel Fusion, a Munich-based startup, is pursuing this dream with the aim of building the first commercially viable nuclear-fusion power plant. The deep-tech company has developed a novel laser-based approach that can produce CO2-free, clean, safe electricity. The research for the prototype is entering the decisive phase with the planned construction of a technology demonstrator in Colorado. The world’s first customized laser system for research into commercial nuclear fusion is to be built on the campus of Colorado State University. Meanwhile, basic research is being carried out in Munich and Bucharest, Romania. Up to 20 IDS Imaging Development Systems cameras are used simultaneously to monitor and control the experiments in the high-vacuum chambers there.
“The cameras allow us to precisely monitor the experiments for researching and developing laser-based fusion,” says Marvel Fusion’s Caya Momm.
A pressure range of 10e4 pascals prevails in the high-vacuum chambers in which the experiments are carried out. This extremely low pressure is far below the atmospheric pressure of around 10e5 and requires special vacuum pumps with pump-down times of up to 8 hours. Efficient execution of the experiments is therefore crucial.
“The cameras thus play a crucial role, as they enable us to observe the experiments and control the measuring devices,” Momm says.
The choice was a model from the GigE uEye LE camera family. A specially developed protective housing around the cameras ensures that they can withstand the extreme conditions and strong electromagnetic pulses that can occur during fusion experiments. This so-called EMP camera box protects the camera electronics from the high-energy discharge.
“This design guarantees us optimum functionality and reliability,” says lab engineer Kyle Kenney.
But what exactly do the cameras see?
During the experiments, some cameras are positioned so they check the mirror reflections and the alignment of the laser. Additional cameras inside the vacuum chamber monitor the arrangement of the superstructure.
“This is necessary because we control the motorized assembly in the chamber from the outside,” says Kenney, outlining the use of up to 20 IDS cameras per laser experiment. “The IDS cameras control measuring devices, detectors, sensors, and mirrors.”
The main aspects of camera use are correspondingly diverse:
• Aligning the optics: Cameras ensure the correct positioning of the mirrors.
• Collision avoidance: Overview cameras in the chamber ensure real-time monitoring to avoid collisions with the motorized superstructure.
• Microscopic focus: Another set of cameras focuses on the target of the lasers, enabling exact laser target acquisition.
• Synchronizing with the laser pulse: The cameras must be synchronized with the laser pulses to ensure accurate and error-free data.
The entire range of tasks is fulfilled by a single camera model; Marvel Fusion opted for the single-board GigE camera UI-5241LE and S-Mount.
“Our space-saving project camera is high-resolution, fast, and small enough to solve all these tasks,” says Markus Schickner, area sales manager at IDS.
With its compact dimensions of 45 x 45 mm, the GigE uEye LE is perfect for customized embedded projects like this one. It can be precisely integrated into the EMP housing, and the GigE interface also allows cable lengths of up to 100 m. The camera model is also recommended due to the 1/1.8 in. CMOS sensor from e2v, which delivers a resolution of 1.3 megapixels (1280 x 1024) at a frame rate of 50 fps.
The price, as well as special features such as triggers for synchronizing with the laser pulse, were also decisive factors in the choice of model. This is because the uEye LE is reduced to the essentials, and thus more affordable. Nevertheless, the multiple integrated model here is so versatile that special cameras aren’t required for different demands. This greatly simplifies handling as many as 20 cameras in the experiment.
“The cameras are designed to work efficiently in our laser experiments,” says Momm of the cameras’ versatility. “They also enable direct and continuous live transmission of the laser experiments. This partially eliminates the need to enter the vacuum chamber.”
The safety aspect is ensured by the camera box’s robust sealing, which prevents particles from escaping and effectively safeguards the integrity of the vacuum chamber against contamination.
The captured image information is further processed using the open source software framework Tango Controls, into which the IDS cameras can be quickly and easily integrated via the GigE Vision standard interface. Tango Controls enables the control and monitoring of devices in distributed systems and has been specially developed for scientific facilities and laboratories. The IDS cameras, as well as every other device integrated into the system, can thus be controlled individually via the network.
At the same time, Tango supports event-based communication, allowing real-time reactions and adjustments to the experimental setup and the vision system as soon as these become necessary during the course of the experiment. The live images supplied by the cameras are immediately processed and delivered with the help of Tango Controls.
“The results were very satisfactory, as the position of the laser was localized precisely,” says electrical engineer Oscar Juina. “Image processing allows us to precisely define or realign the position of the optics with linear drives.”
Outlook
“Specially designed cameras with EMP housings of this quality are typically hard to find and very expensive,” says Momm. “The adaptability and availability of the IDS cameras are valuable to us. As we are currently focusing on time-limited research experiments, the quantities required are still small. However, this could change in the future with regard to the planned scaling up to larger fusion experiments and for future fusion power plants.”
According to the company, the world’s most powerful short-pulse laser system is to be built in Colorado by 2026. The first commercial power plants are to be built by the mid-2030s, and the company hopes to be able to make a major contribution to the energy supply by 2045.
Advances in laser fusion and its promise as an innovative energy source are of great importance. They have the potential to significantly reduce the carbon footprint of the global energy supply.
