Published: Tuesday, August 8, 2017 - 11:29 (YXLON International: Hamburg, Germany) -- X-raying in 3D may seem straight out of a futuristic sci-fi movie, but with the recent advancements of Computed Tomography (CT) it is a reality, and a fast, easy, and affordable option. The newly published Computed Tomography (CT) for Industrial Applications Handbook makes it simple to understand what the process of CT scanning entails and how you can use it for your industrial applications. Busy engineers who are either experienced or novices at imaging will find simple methods and approaches for applying CT scanning technology to their industrial parts and subcomponents. CT starts by scanning an object and generating a series of 1D and 2D images at different angles. The separate images are assembled into one 3D representation of the scanned object using powerful imaging software. These images, called “tomograms,” are taken using X-ray scanning, usually through a full 360-degree rotation, and represent “slices” of the full 3D representation of the scanned object. The brighter the gray areas are in an image, the denser they are. Black is negative space. From these slices, the final 3D image is rendered, providing actual insight without destroying the item being imaged. Known as “volume rendering,” these pictures can have realistic shadows, opacity, camera angles, and more. Many times, even the 2D images are enough for engineers to get the information they need. CT dates back to the early 1970s, with research by Godfrey Hounsfield and Allan Cormack, who eventually won the Nobel Prize in Physiology in 1979 for their work in using CT on the human brain. Its applications have since then extended beyond the human brain into various industrial and research applications. As intriguing as the scanning process is, it is the applications of the images themselves that show the strength of this imaging technique. An entire range of industries can benefit from CT scanning, including: CT scanning allows the inspection of raw materials, end products, and molds, along with other parts used in industry to ensure they meet quality and reliability standards without having to disassemble or destroy them. Engineers can get an inside look at construction techniques—for example, to see how well a weld has been applied between two pieces of metal, or to see if a critical jet-engine fan blade has any hairline cracks. It can show porosity levels in rubber, and examine new, lightweight parts for automobiles. Using CT scanning can help catch problems early before they turn into critical failures. One of the most notable benefits CT provides is its ability to allow engineers to see densities. That means, for example, engineers can see inside injection-molded and 3D-printed plastic parts where voids and porosity are, as well as cracks, flaws, and other manufacturing defects using this nondestructive testing method. In metrology, CT can easily allow comparisons between surfaces. Two CT scans can be compared to each other, or they can be compared to CAD (computer aided design) drawings. The differences can be displayed by color for fast, easy identification. CT scans are also used in the analysis of concrete and structures. In these applications, the scans can help to show how fluid moves through core samples, to evaluate how concrete behaves before and after stress and fatigue tests, and to examine aggregate. CT scans can also allow inspection of lightweight materials used to reduce weight in automobiles, aircraft, spacecraft, and other vehicles. Beyond inspection and quality control, CT scanning can aid in reverse engineering. Engineers can get a literal inside look at a part without having to disassemble or destroy it. With CT scans, internal geometries and material densities are easily visible. The data gathered make it far simpler to understand how a particular part functions or if it meets necessary specifications. Computer software even exists for edge detection, if this is required. These are just some examples of what can be accomplished with CT scanning. For a full overview of applications, and to learn how CT can be of benefit to your single sample or production needs, download the YXLON CT handbook. It contains a wealth of information, including: Quality Digest does not charge readers for its content. We believe that industry news is important for you to do your job, and Quality Digest supports businesses of all types. However, someone has to pay for this content. And that’s where advertising comes in. Most people consider ads a nuisance, but they do serve a useful function besides allowing media companies to stay afloat. They keep you aware of new products and services relevant to your industry. All ads in Quality Digest apply directly to products and services that most of our readers need. You won’t see automobile or health supplement ads. So please consider turning off your ad blocker for our site. Thanks, YXLON International designs and produces radioscopic and CT inspection systems for a broad variety of industrial applications and fields.YXLON Publishes New Computed Tomography (CT) Handbook
X-Rays in 3D: What is CT scanning?

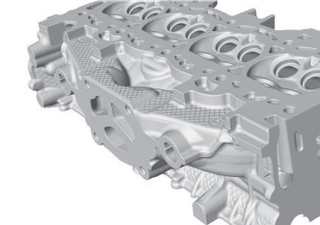

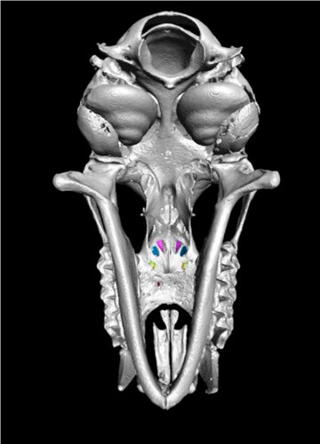

Figures 1 and 2: Examples of 3D models CT can produceGetting an inside perspective: What can be done with CT images?
• Electronics
• Automotive
• Aerospace
• Foundry and casting
• Tire and wheel
• Welding
• Additive manufacturing
• Science and laboratory
• Metrology

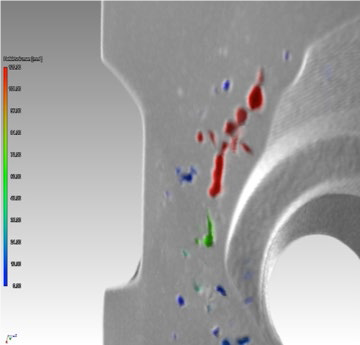

Figure 3: Defects inside a part, classified by size

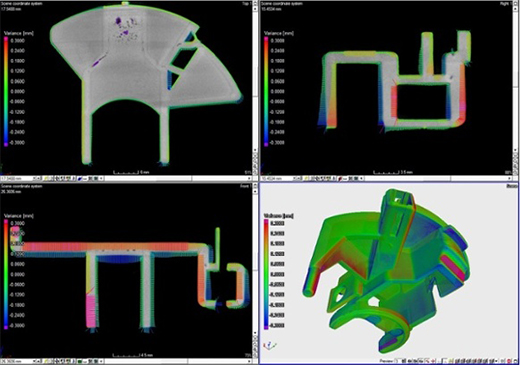

Figure 4: Comparisons of surface scans

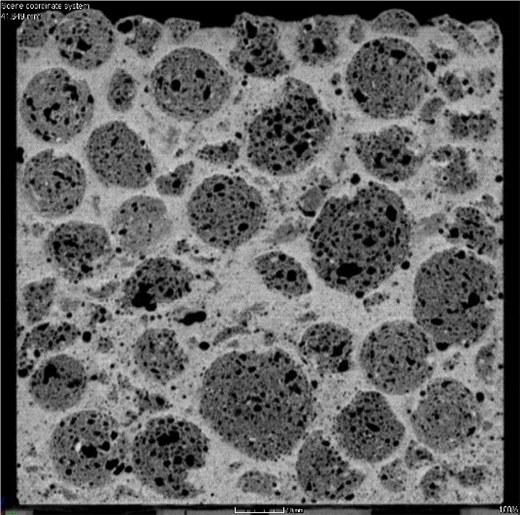

Figure 5: A look inside a core sample

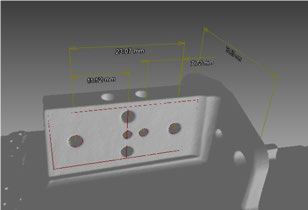

Figure 6: Reverse engineering by measurementsLearn more
• Detailed descriptions of the CT scanning process
• In-depth examinations of applications
• Descriptions of the various components used in CT scanning
• Detailed looks at the beam and imaging technologies used
• Explanations of the software programs available
• Advice for designing employee training
• Notes on regulations to pay attention to
• Links to even further information
